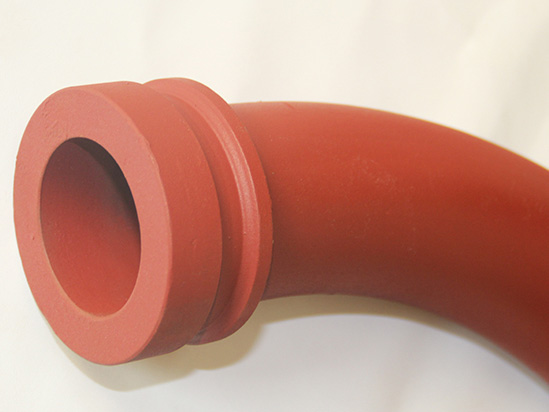

Bend Pipe DN50-2"

Products Features:

The most widely used concrete pumping line bend pipe.

Good wear resistance and ductility.

Ideal for high pressure pumping environments.

Key Specifications:

Measurement: DN50/2"

Material: ST52

Work Pressure: 160-250 Bar

Flange Ends: SK/HD/FM/ZX or Customize

Product Details

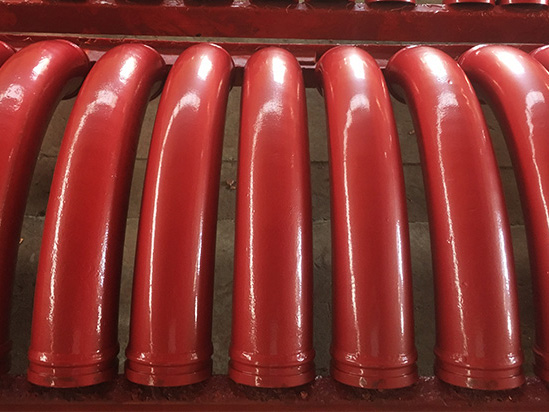

Bend Pipe DN50-2"

Part NO. OD In./DIN Center Line Radius In./mm Degree of Angle Theoretical weight(lbs./kg.)
BP5016452.0/ DN5016/406457.0/3.2
BP5016902.0/ DN5016/4069011.7/5.3
BP5048452.0/ DN5048/12194514.1/6.4
BP5048902.0/ DN5048/12199027.5/12.5
Any type of elbow can be customized.

Any types of weld ends are available:

Metric (SK) weld ends

Heavy duty weld ends

Schwing F/M weld ends

Putzmeister Z/X weld ends
