Products Features:

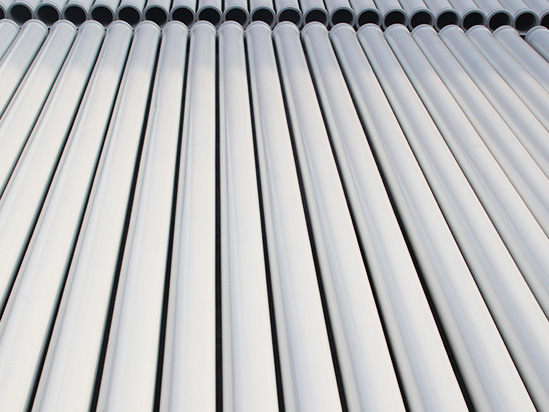

The most widely used concrete pumping line pipe.
Good wear resistance and ductility.
Ideal for high pressure pumping environments.
Key Specifications:
Measurement: DN100/4"
Material: ST52
Work Pressure: 160-250 Bar
Flange Ends: SK/HD/FM/ZX or Customize
ST52 Line Pump Pipe DN100-4"
| Part Number | Thickness(mm) | Theoretical weight(lbs./kg.)/meter | Length Deviation | Test Pressure | Weld Tensile Strength | Surface Coating |
| ST52-430 | 3 | 17/7.8 | ±1mm | 160bar | ＞360bar | Painting |
| ST52-435 | 3.5 | 19.8/9 | ±1mm | 180bar | ＞360bar | Painting |
| ST52-440 | 4 | 22.6/10.3 | ±1mm | 160bar | ＞480bar | Painting |
| ST52-445 | 4.5 | 25.3/11.5 | ±1mm | 180bar | ＞480bar | Painting |
| ST52-450 | 5 | 28/12.7 | ±1mm | 250bar | ＞480bar | Painting |
| Length=1000mm Length=2000mm Length=3048mm(Length=120 inch, Length=10 feet) Length=4500mm Length=6000mm ........ Any length and thickness can be customized. | ||||||

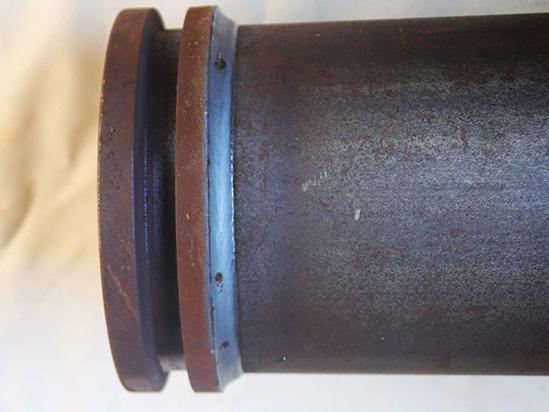

Any types of weld ends are available:
Metric (SK) weld ends

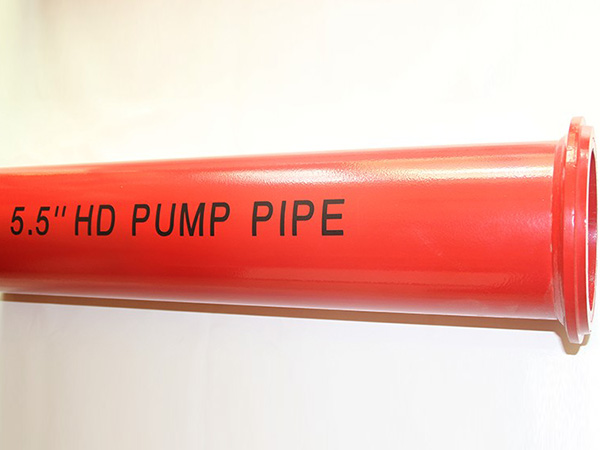

Heavy duty weld ends
Schwing F/M weld ends
Putzmeister Z/X weld ends
