Current Position : Home > Product > Line Pump Pipe & Bend > M45 Line Pump Pipe DN125-5"

M45 Line Pump Pipe DN125-5"

Products Features:

Good wear resistance and ductility.

Far better impact resistance and pressure resistance than ST52 pipes.

Ideal for high pressure pumping environments.

Key Specifications:

Measurement: DN125/5"

Material: M45 Seamless pipe

Work Pressure: 160-360 Bar

Flange Ends: SK/HD/FM/ZX or Customize

CONTACT US
Product Details

M16 Line Pump  Pipe DN125 -5" With SK, HD, ZX, FM Flange Ends

Part Number Thickness(mm) Theoretical weight(lbs./kg.)/meter Length Deviation Test Pressure Weld Tensile Strength Surface Coating
M16-540428/12.7±1mm160bar>480barPainting
M16-5454.531.5/14.3±1mm180bar>480barPainting
M16-550535/15.8±1mm250bar>480barPainting
M16-560644/19.8±1mm280bar>480barPainting
M16-5656.547/21.4±1mm280bar>480barPainting
M16-5717.151/23.3±1mm360bar>480barPainting
M16-5919.165/29.4±1mm360bar>480barPainting
M16-51001070/32±1mm360bar>480barPainting
M16-51201284/38±1mm360bar-Primer
Length=1000mm
Length=2000mm
Length=3048mm(Length=120 inch, Length=10 feet)
Length=4500mm
Length=6000mm
........
Any length and thickness can be customized.

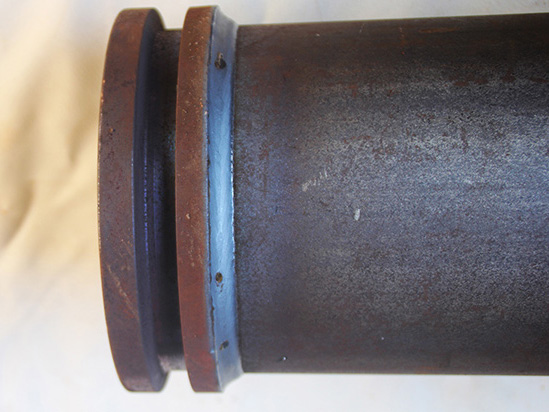

Any types of weld ends are available:

Metric (SK) weld ends

Heavy duty weld ends

Schwing F/M weld ends

Putzmeister Z/X weld ends
