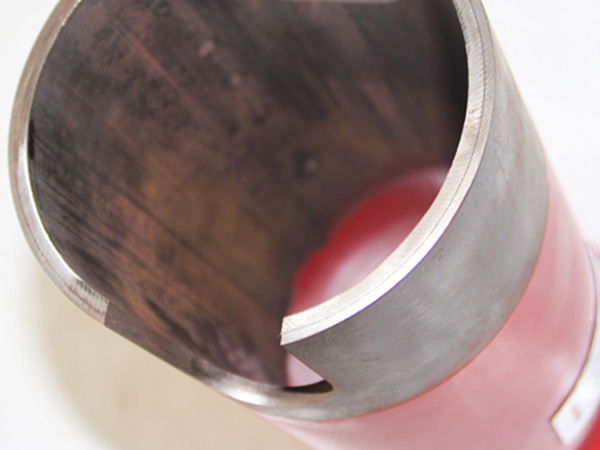

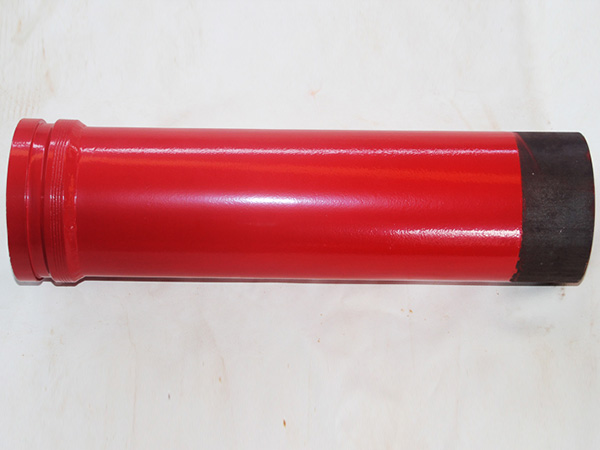

Twin Wall Boom Pipe DN125 4.85mm

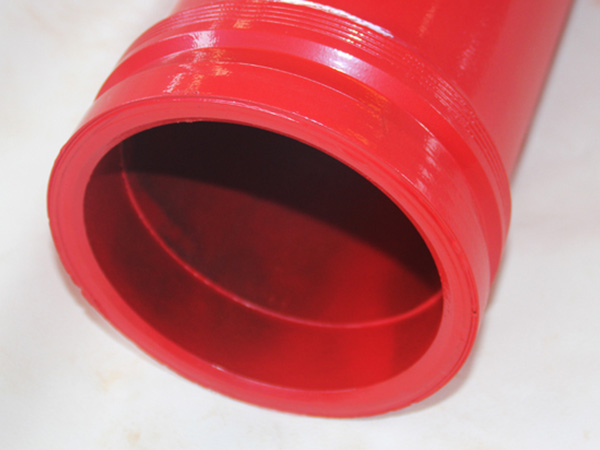

Flange Ends: High-chromium alloy liner +ST52 Protective layer

Ensure the lifetime of the flange is synchronized with the pipe.

Hardened Process: Ultra-high frequency heat treatment

Ensure the hardness of the hardened layer.

Precision: ±1mm

Ensures smooth installation of the pipe.

Safety: 100% pressure test

Ensure safe and efficient pumping

Product Details

Twin Wall Boom Pipe DN125 4.85mm

Part Number Length (in/mm) Theoretical weight (lbs./kg.) Hardened Process Hardness HRC Length Deviation Working Pressure Weld Tensile Strength Surface Coating
HT485W50L1M39.37/100036/15UHF Quenching (400KHz)UP to  68±1mm170bar>480barBaking paint
HT485W50L2M78.75/200071/31UHF Quenching (400KHz)UP to  68±1mm170bar>480barBaking paint
HT485W50L3M118.12/3000101/46UHF Quenching (400KHz)UP to  68±1mm170bar>480barBaking paint
HT485W50L4M157.48/4000135/61UHF Quenching (400KHz)UP to  68±1mm170bar>480barBaking paint
HT485W50L6M236.22/6000202/92UHF Quenching (400KHz)UP to  68±1mm170bar-Primer
Any length can be customized, please consult us.
