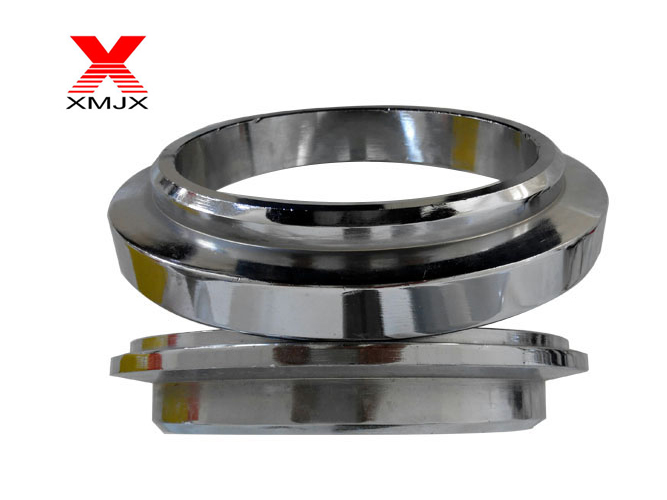

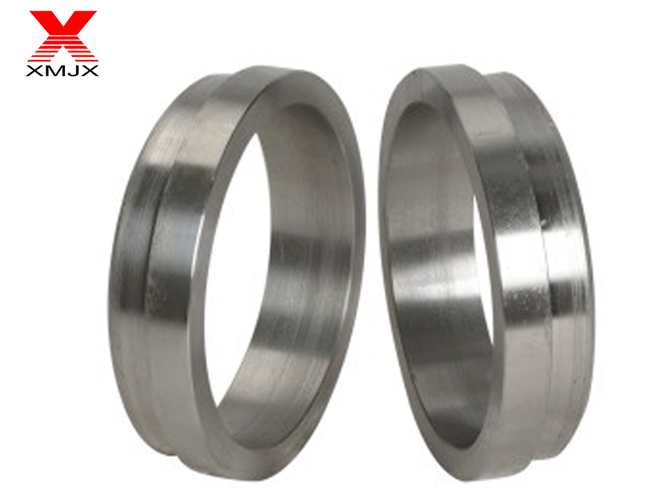

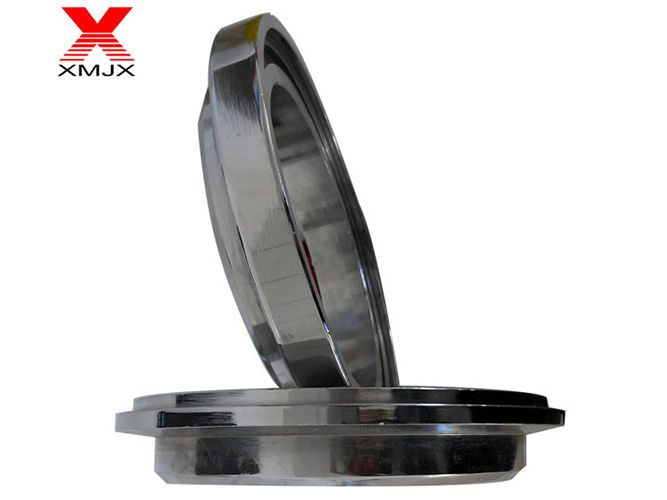

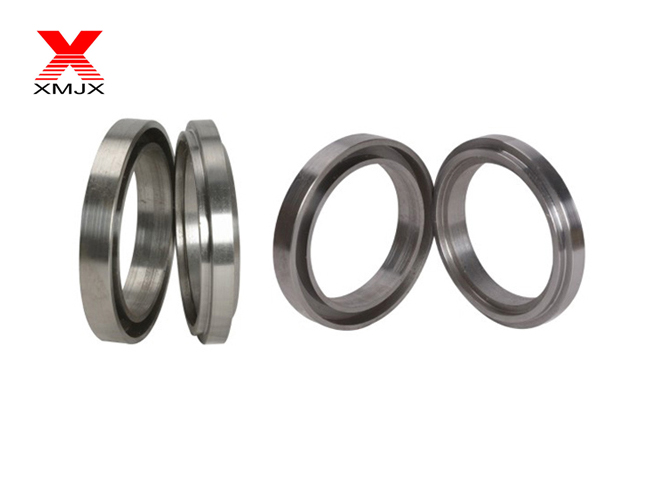

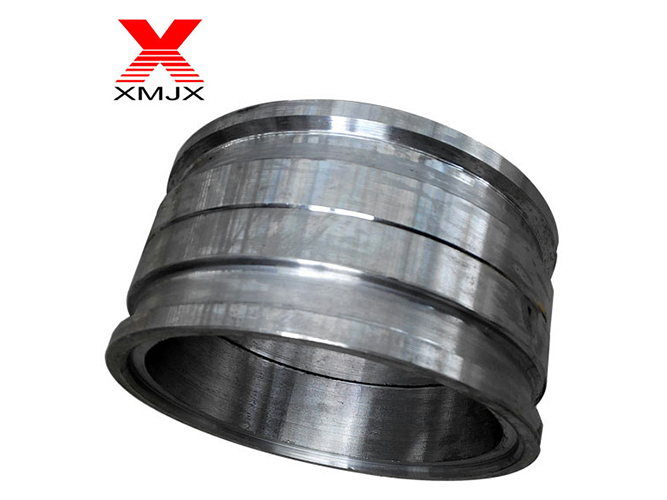

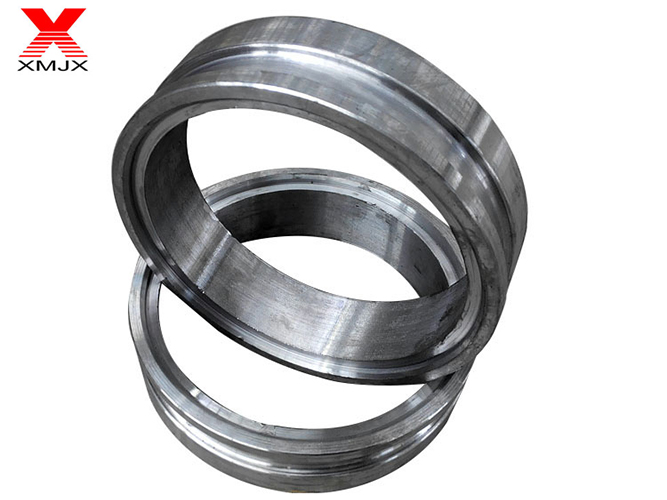

Falnge Ends

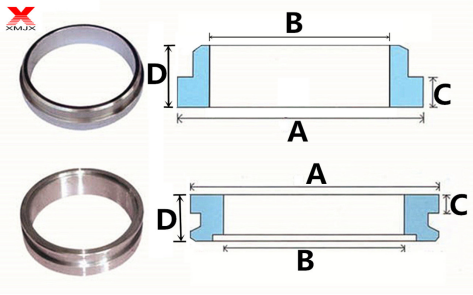

| Item | Specification & Model | OD(mm) | ID(mm) | Lip(mm) | Hight(mm) |
| A | B | C | D | ||
| XMFL01 | 2" HD | 77.8 | 51 | 12.7 | 35 |
| XMFL02 | 2.5" HD | 82.5 | 64 | 12.7 | 29 |
| XMFL03 | 2" HD | 82.5 | 67 | 12.7 | 35 |
| XMFL04 | 3" HD | 106 | 75 | 12.7 | 29 |
| XMFL05 | 3" HD | 106.4 | 76 | 12.7 | 35 |
| XMFL06 | 4" HD | 131.5 | 102 | 15.2 | 35 |
| XMFL07 | 5" HD | 157 | 126 | 15.2 | 35 |
| XMFL08 | 4" SK | 122 | 103 | 17 | 35 |
| XMFL09 | 4" SK | 122 | 103 | 17 | 40 |
| XMFL10 | 4" SK | 124 | 100 | 17 | 35 |
| XMFL11 | 5" SK | 148 | 126 | 17 | 35 |
| XMFL12 | 5" SK | 148 | 130 | 17 | 35 |
| XMFL13 | 5" SANY | 157 | 126 | 17 | 40 |
| XMFL14 | 6"SK | 170.2 | 152.4 | 16 | 38.5 |
| XMFL15 | 5"ZOOMLION | 175 | 125 | ||
| XMFL16 | 5.5"Z/X PM | 175 | 140 | 8 | 17 |
| XMFL17 | 6" | 177 | 150 | 17 | 35 |
| XMFL18 | 6"SANY | 184 | 145 | 17 | 35 |
| XMFL19 | 6"ZOOMLION | 195 | |||
| XMFL20 | 6" | 200 | 180 | 17 | 40 |
| XMFL21 | 6"Z/X | 205 | 150 | ||
| XMFL22 | 7"Z/X | 230 | 180 | ||
| XMFL23 | 8" | 236 | 180 | 22 | 35 |
| XMFL24 | 5"F/M SCHWING | 166 |
