Bend Pipe DN65-2.5"

Products Features:

The most widely used concrete pumping line bend pipe.

Good wear resistance and ductility.

Ideal for high pressure pumping environments.

Key Specifications:

Measurement: DN65-2.5"

Material: ST52

Work Pressure: 160-250 Bar

Flange Ends: SK/HD/FM/ZX or Customize

Product Details

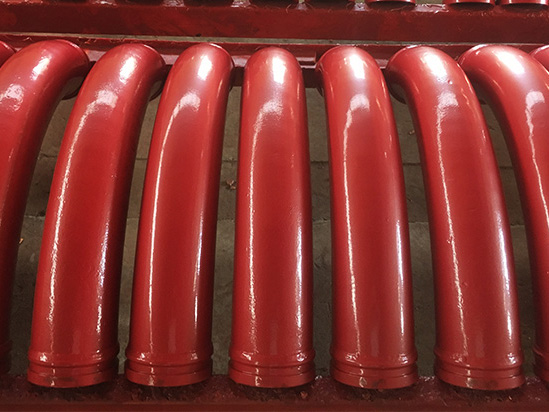

Bend Pipe DN65-2.5"

Part NO. OD In./DIN Center Line Radius In./mm Degree of Angle Theoretical weight(lbs./kg.)
BP6516452.0/ DN6516/406459.5/4.3
BP6516902.0/ DN6516/4069014.1/6.4
BP6548452.0/ DN6548/12194525.3/11.5
BP6548902.0/ DN6548/12199041/18.6
Any type of elbow can be customized.

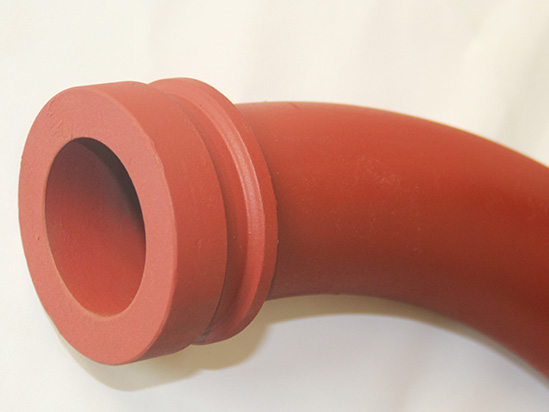

Any types of weld ends are available:

Metric (SK) weld ends

Heavy duty weld ends

Schwing F/M weld ends

Putzmeister Z/X weld ends
