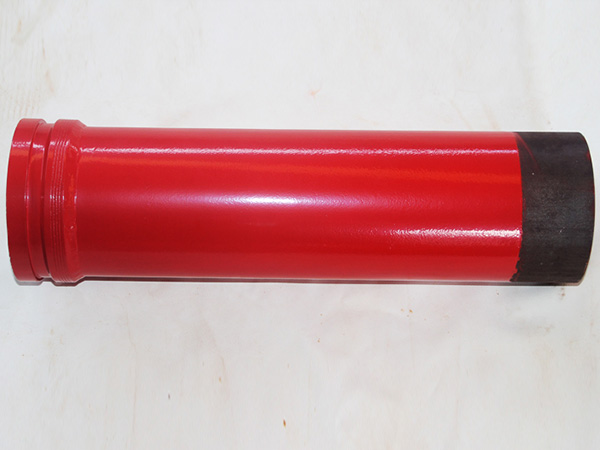

Twin Wall Boom Pipe DN125 4.35mm

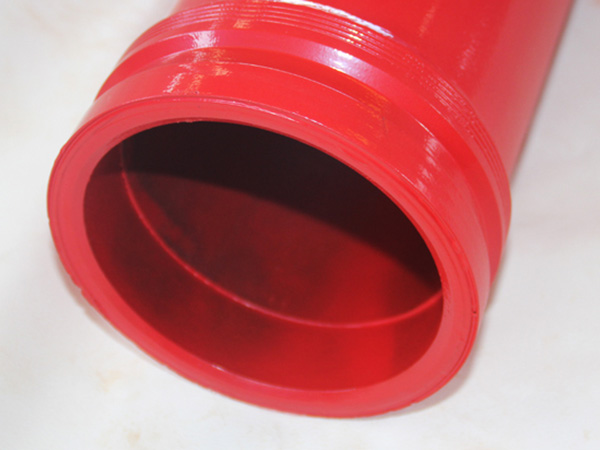

Flange Ends: High-chromium alloy liner +ST52 Protective layer

Ensure the lifetime of the flange is synchronized with the pipe.

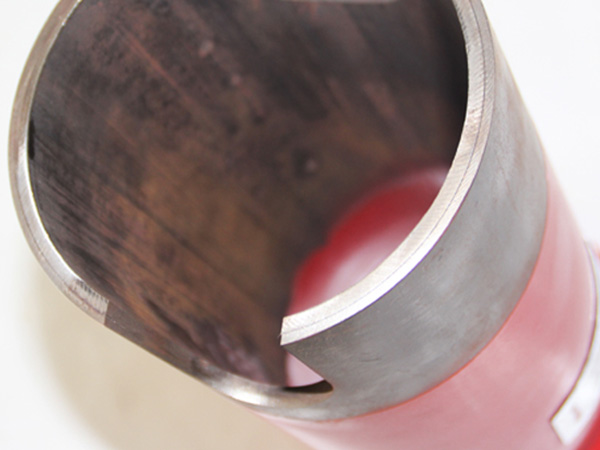

Hardened Process: Ultra-high frequency heat treatment

Ensure the hardness of the hardened layer.

Precision: ±1mm

Ensures smooth installation of the pipe.

Safety: 100% pressure test

Ensure safe and efficient pumping

CONTACT US
Product Details

Twin Wall Boom Pipe DN125 4.35mm

Part Number Length (in/mm) Theoretical weight (lbs./kg.) Hardened Process Hardness HRC Length Deviation Working Pressure Weld Tensile Strength Surface Coating
HT435W50L1M39.37/100032/14.5UHF Quenching (400KHz)UP to  68±1mm170bar>480barBaking paint
HT435W50L2M78.75/200063/29UHF Quenching (400KHz)UP to  68±1mm170bar>480barBaking paint
HT435W50L3M118.12/300096/43.5UHF Quenching (400KHz)UP to  68±1mm170bar>480barBaking paint
HT435W50L4M157.48/4000126/57UHF Quenching (400KHz)UP to  68±1mm170bar>480barBaking paint
HT435W50L6M236.22/6000191/87UHF Quenching (400KHz)UP to  68±1mm170bar-Primer
Any length can be customized, please consult us.
