Sany Hopper End Elbow

Material: 40CrMo

Ensure to meet different pumping environment requirements

Production process: precision casting

Ensure maximum service life in different pumping environments

Precision: ±1mm

Ensures smooth installation of the pipe.

Safety: 100% pressure test

Ensure safe and efficient pumping

CONTACT US
Product Details

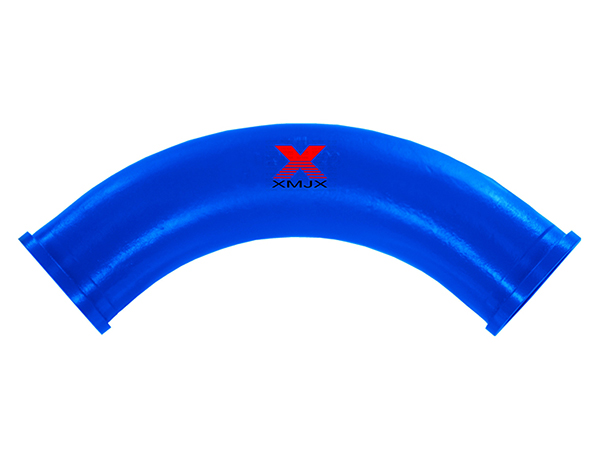

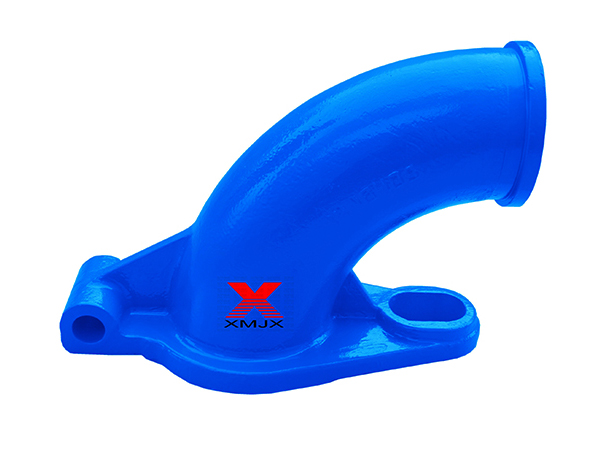

SANY hinged elbow & outlet elbow

Part NO. Description Dimension Material Theoretical weight(lbs./kg.) Pressure
XM00568EB338SANY hinged elbowDN175 90°40CrMo52.5360bar
XM00568EB339SANY hinged elbowDN150 90°40CrMo42.2320bar
XM00568EB340SANY outlet elbowDN175 90°40CrMo41.3360bar
XM00568EB341SANY outlet elbowDN150 R400 90°40CrMo37.2320bar
XM00568EB342SANY outlet elbowDN150 R500 90°40CrMo0320bar
XM00568EB343SANY outlet elbowDN150 R400 30°40CrMo27.9320bar
XM00568EB344SANY outlet elbowDN150 R400 30°40CrMo30.9320bar
XM00568EB345SANY outlet elbowDN150 R400 30°+50040CrMo48.5320bar
