Material: ST52/37Mn5/Mn13-4/High chromium alloy
Ensure to meet different pumping environment requirements
Production process: Machining/ precision casting/welding
Ensure maximum service life in different pumping environments
Precision: ±1mm
Ensures smooth installation of the pipe.
Safety: 100% pressure test
Ensure safe and efficient pumping

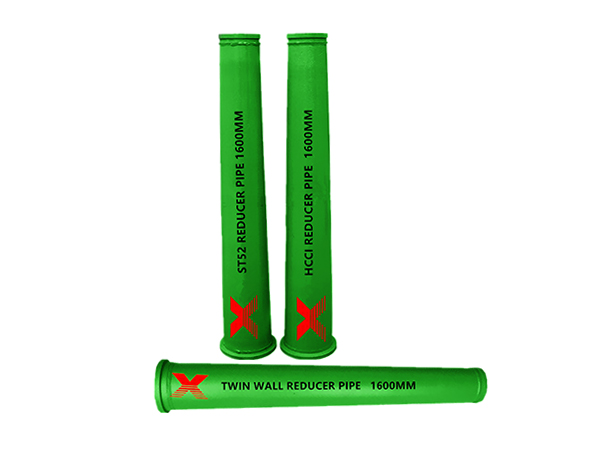

| ST52 Reducer Pipe 1600MM (63 In.) | |||||||||
| Part Number | Specification | Structure | Material | Approximately Wall Thickness (mm) | Shipping Weight lbs/kg | Manufacture process | Dimension tolerance | Pressure | Weld tensile strength |
| RP1600ST52 | DN150-125×1600 | Single wall | ST52 | 8 | 105/47.7 | Pushed/Auto matic welding | ＜1mm＜1° | 260bar | ＞890bar |
| HCCI Reducer Pipe (High chromium cast iron reducer pipe) 1600MM(63 In.) | |||||||||
| Part Number | Specification | Structure | Material | Approximately Wall Thickness (mm) | Shipping Weight lbs/kg | Manufacture process | Dimension tolerance | Pressure | Weld tensile strength |
| RP1600CCI | DN150-125×1600 | Single wall | High chromium cast iron | 10 | 130/58.8 | Pushed/Automatic welding | ＜1mm＜1° | 320bar | ＞890bar |
| Twin Wall Reducer Pipe 1600MM(63 In.) | |||||||||
| Part Number | Specification | Structure | Material | Approximately Wall Thickness (mm) | Shipping Weight lbs/kg | Manufacture process | Dimension tolerance | Pressure | Weld tensile strength |
| RP1600TW | 150-125×1600 | Twin wall | Chromium cast iron×6.0mm/ST52×4.0mm | 10 | 115/52 | UHF quenching (400KHz) | ＜1mm ＜1° | 200bar | ＞650bar |
